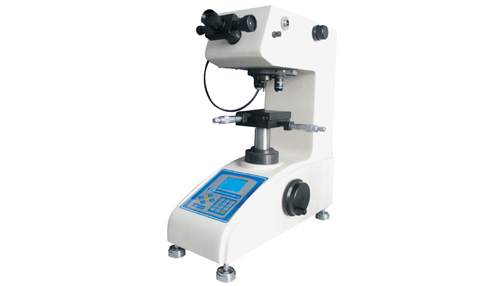

Digital Micro Vickers Hardness Tester TMV-1

untuk pengujian baja, logam nonferrous, IC serpihan, plastik tipis, foil, coating, plating lapisan, lapisan permukaan, laminating logam, kedalaman dan gradien kekerasan perlakuan panas dan lapisan karburisasi lapisan arang

Beautiful shape, has good reliability, operability and intuitive
Built-in computer, only has to input length of the indenter, directly read the measured value
With 400X high-magnification optical measurement systems
Especially suitable for testing steel, nonferrous metals, IC flake,thin plastic, foil, coating, plating layer, the surface coating, laminating metal, depth and hardness gradient of heat treatment and carburization layer of carbonized layer
TMV-1S: Micro Vickers hardness tester by manual turret
TMV-1: Micro Vickers hardness tester by auto turret

Hardness scale	HV0.01,HV0.025,HV0.05,HV0.1,HV0.3,HV0.5,HV1
Display	Dwell time, hardness value
Test force	10, 25,50, 100, 200,300,500,1000
Carriage control	Loading/dwell/unloading(automatic)
Dwell time(s)	5~60
Amplification of objective	10×,40×
Amplification of eyepiece	10×
Measuring range(µm )	200
Resolution(µm )	0.25
Measuring range	5~3000HV
Dimension of XY table(mm)	100×100
Movement field of XY table (mm)	25×25
Max.height of the specimen(mm)	85
Max.Width of the specimen(mm)	120
Output	RS232 serial port
Power supply	AC220V/50Hz
Dimensions(mm)	490×310×515
