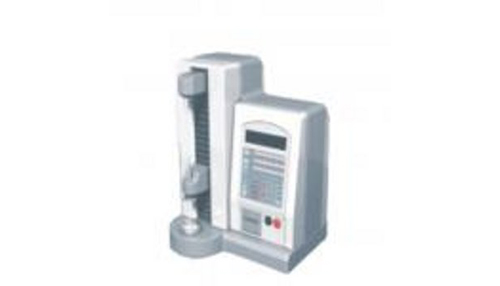

TLS-V200 digital spring tension and compression testing machine



TLS-V200 model terutama digunakan tepat menguji pegas kecil di ketegangan dan kondisi kompresi. Menyadari sepenuhnya otomatis tes kemajuan, efisiensi tinggi dan dapat diandalkan. Mengadopsi Panasonic Servo sistem dan peredam NEUGART, dan mengadopsi ARM7 prosesor, 24bit tinggi simulasi konverter akurat, 320x240 layar LCD. Pengujian hasil cetak.

Feature

The machine can realize compression plate auto zeroing; has USB port hardware design, easy for update. Auto test
function, the user may input spring tests condition and machine will automatically finish all test progress. After the test finish,
the micro printer will output test results, the machine has high efficiency test speed. The machine also has a overload
protection function.

Spesification

Maximum test load 10 / 50 / 100 / 200 N
Minimum read of test load 0.001/0.001/0.01/0.01 N
Minimum read of displacement 0.01mm
Tension test space 200mm
Compression test space 200mm
Compression plate diameter 50mm
Change unit between kgf, lbf, N. (Default display in N)
Load cell available in 2% ~ 100% FS
Relative error within 0.5%
Test speed 0.5~400mm /min
Power supply 220V 50 / 60Hz
