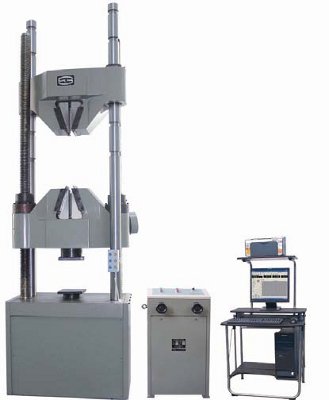

WAW-600L

Komputer Controlled Servo Hydraulic Steel Strand Wire Mesin Pengujian terutama digunakan untuk uji ketegangan kawat baja terdampar Prategang Beton. Hal ini banyak digunakan dalam bangunan, konstruksi jalan, jembatan, aerospace, perguruan tinggi dan lembaga Penelitian dan lain-lain

Specifications	WAW-1000L	WAW-600L
Max. Test Load	1000KN	600KN
Measuring Range	20-1000KN (2% ~ 100% Fn)	12-600KN
Test Load Accuracy	Class 1	Class 1
Piston Stroke	250mm	250mm
Max. Piston Speed	50mm/min	50mm/min
Max. Tension Space	1000mm (including piston stroke)	1200mm (including piston stroke)
Deformation Measuring Extensometer	Gauge:200mm Deformation:15mm	Gauge:200mm Deformation: 15mm
Deformation Measuring Range	2% - 100% of FN	2% - 100% of FN
Deformation Accuracy	≤±1% of indicated value	≤±1% of indicated value
Range of Clamping Jaws	Φ8 – Φ15, Φ15 – Φ22 mm	Φ9.5 – Φ12.7, Φ12.7 – Φ15.4 mm
Steel Strand Wire Clamping Depth	225mm	180mm
Power Supply	5kW	5kW
