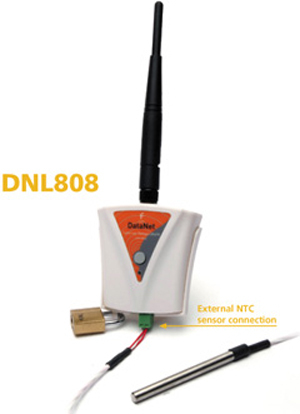

DataNet High-End Wireless Data Acquisition System



The DataNet adalah 16-bit data logging sistem dengan 4 masukan untuk pengukuran langsung dan pencatatan PT-100, termokopel (J, K, T), tegangan, arus, frekuensi, denyut nadi dan kontak kering. transmisi data dari unit ke komputer pusat menggunakan merek baru protokol ZigBee telemetri nirkabel. protokol ZigBee nirkabel menggunakan frekuensi bebas lisensi 2,4 GHz RF band. Setiap unit DataNet juga berfungsi sebagai repeater transmisi untuk unit tetangga, membentuk jaringan mesh handal hingga 65.000 node

Feature

  • Reliable transmission ensuring no data loss
  • Transmission range that can be constantly expanded by adding additional nodes
  • Minimal costs thanks to wire-free infrastructure
  • Portable units facilitating easy deployment in various environments

Spesification

Temperature Thermocouple T
Range -200 to 400 ˚C
Resolution 0.1 ˚C
Accuracy -200 to -60 ˚C ±0.5 %
60 to 400 ˚C ±0.5 %
-60 to 60 ˚C ±0.3 ˚C
Cold junction compensation ±0.3 ˚C
Pulse Counter (input 4 only)
Zero crossing detector
Range 1 to 65,536 counts
Resolution 1 count
Frequency range 0 to 4,000 Hz
Input signal 0 to 5 V
Input impedance 470 Ω
Frequency (input 4 only)
Zero crossing detector
Range
 20 Hz to 4 KHz
Input signal
0 to 4,000 Hz
Input impedance:
470 Ω
Internal Temperature
Type

DNL 910: PT100

DNL 920: Digital
Range -20 to 50 ˚C
Resolution 0.1 ˚C
Accuracy DNL 910: ±0.3 ˚C
DNL 920: ±0.5 ˚C
Internal Humidity
Range 5 to 95 %
Resolution 0.5 %
Accuracy ±3 % at 10-90 %
EXTERNAL SENSORS
PT100 Sensor
 Range  -70 to 400 ˚C
 Cable length  2.5m/4m/6m
 Teflon cable range  -65 to 200 ˚C
 Probe  Diameter 6mm,
Length 81mm
