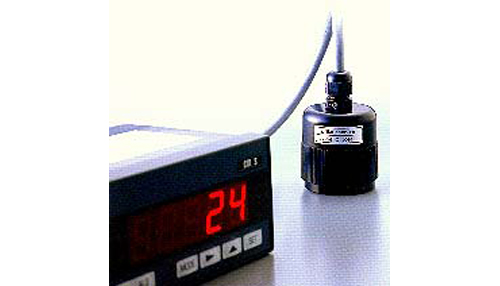

VIBRATION CONVERTER Vibro-Converter Model-2502



VIBRATION CONVERTER Vibro-Converter Model-2502 use For vibration monitoring and control with simple and reliable.


Feature

  • Three types; measurements for displacement, velocity and acceleration.
  • As output is 4 to 20mA, it is possible to connect to recorder, indicator and sequential circuit directly.
  • Small size! light weight! low price! All in one type for sensor, amplifier and transmitter.
  • It is only double lines type, joined together for both lines, power supply and signal.

Spesification

  • Forsimple vibration monitoring system with low cost.
  • As for assembling into the electric motors, blowers, pumps and the other various rotating machines.
  • As the vibration sensor in the automatic inspection system.
  • As for the simple type vibration meter.
  • For trend recording of vibration level.
Model 2502-03 2502-02 2502-01
Type Displacement Velocity Acceleration
Full scale range 200μmP-P 50mm/sRMS 100m/s2Peak
Measuring range 1%-110% of Full scale
Output current 4 to 20mA/0 to FS
Frequency range 10-500Hz 10-1000Hz 5-1000Hz
Linearity Within 1%
Accuracy Within 5% (80Hz,1/2 Full scale,20°C)
Transverse sensitivity Less than 5%
Driving voltage 9-28V DC
Warming up time 10sec. approx
Ambient temperature -20°C to +60°C
Protection IP64
Vibration limit 200m/s2 for continuous 1000m/s2 for shock
Resonant frequency 5kHz approx
Withstand voltage AC1500V 1minute
Output cable 3m pig tale (VCTF2×0.75??2)
Dimensions f45×H45mm
Weight 105g without cable
Accessories Setscrew M6 lengh=10
Option Digital monitor 2590
Mouning base
