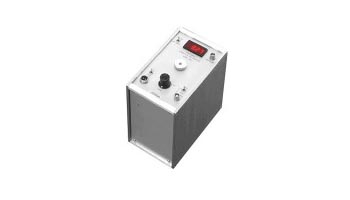

Vibration Calibrator Model-8100
The VIBRATION CALIBRATOR Model-8100 is a one of VIBRATION INSTRUMENT, tis model is a Portable Vibration Calibrator is designed for checking and calibrating a vibration pickup or a vibration Meter easily in a factory or other operation fields, thereby providing the user with reliable data.
Feature
Portable Vibration Calibrator | MODEL-8100 | 1pc | ||
Portable case | 1pc | |||
AC Cable | 1pc | |||
Instruction manual | 1copy |
Spesification
Vibration Calibrator a part | |
a)Dynamic rated force | Maximum 9.8N volume into change |
b)Frequency range | 5Hz - 5KHz |
c)Displacement, peak max. | 5mm P-P |
d)Movable mass | 75g with in |
e)Flexure stiffness | 400g/mm |
f)Distortion factor | 80Hz, 500Hz 10m/s2 to 2% with in |
Vibration meter a part | |
(a)Acceleration range | 0 - 199.9m/s2 |
Resolution 0.1m/s2 | |
Limit of error 3% with in | |
(80Hz,10m/s2 ,25 °C ) | |
Frequency response | |
5Hz - 5KHz | |
(b)Displacement range | 0 - 1.999mmP-P |
Resolution 1μmP-P | |
Limit of error 3% with in | |
(80Hz,10m/s2 ,25 °C ) | |
Frequency response | |
10Hz-5KHz | |
The other specifications | |
a)Ambient temperature | -20°C-50°C |
b)Power supply | AC100V, 50Hz/60Hz |
