Sistem InspeksiVibration Meter Portable Balancer Model-7102a

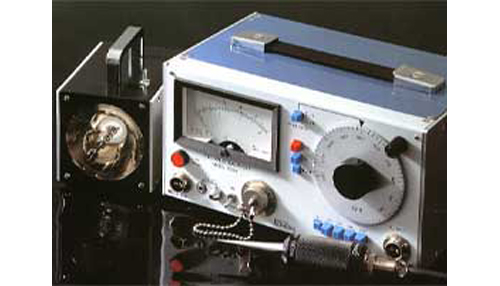

This system is furnished with functions VIBRATION METER, tachometer and balancer. and also contained in a shoulder case and is therefore portable. Model 2007 VIBRATION DETECTOR included in this system is small in size and can be hand-held when conducting measurement.
A xenon lamp employed in the Stroboscope enables to make measurement clearly. This system is provided for the purpose of monitoring with output terminals with which waveform observation or recording can be made. The amplifier is small in size and light in weitht and is composed of circuits of high reliability and stability employing IC's and semiconductors. Control knobs and switches are all arranged on the front panel for convenient operation.
This system is furnished with functions VIBRATION METER, tachometer and balancer. and also contained in a shoulder case and is therefore portable. Model 2007 VIBRATION DETECTOR included in this system is small in size and can be hand-held when conducting measurement.
A xenon lamp employed in the Stroboscope enables to make measurement clearly. This system is provided for the purpose of monitoring with output terminals with which waveform observation or recording can be made. The amplifier is small in size and light in weitht and is composed of circuits of high reliability and stability employing IC's and semiconductors. Control knobs and switches are all arranged on the front panel for convenient operation.
Feature
| 1.Portable Balancer Amplifier Model-7102A |
1 set | 6.Shoulder Case | 1pce | |||
| 2.Vibration Detector Model-2007 (complete with contact pin) |
1 set | 7.Instruction Manual | 1copy | |||
| 3.Cable 3m for the above | 1pce | OPTIONS | ||||
| 4.Stroboscope | 1 set | Detector Mounting Magnet. | ||||
| 5.Cable 3m for the above | 1pce | Calculator with built-in software (for calculation and adjustment of direction and weight). |
Spesification
| Vibration Detector | Model-2007 Electro dynamic Type, 80mV/cm/ sec. | |
| Measuring Ranges | 5 steps of 10,30,100,300 and 1000μmp-p F.S. | |
| Speed Range | 300 to 30,000 r.p.m. | |
| Filter Characteristics | Band-Pass Filter, Q=10. 300 to 3000 rpm(ׂPRange) 3000 to 30000 rpm (ׂP0 Range) |
|
| Oscillation Frequeny | Same with that of Filter (as functions of Tachometer) | |
| Stroboscope | Handy Type with incorporated Xenon Lamp. Flashing Time: 5 to 10μs. |
|
| Monitor Output | ±1V Max../F.S., 10KΩ or more. ±5mA Max../F.S., 20Ω or less. Provided with Output Adjustor. |
|
| Power Supply | 100V AC, 50/60 Hz, 30VA. | |
| Dimensions and weight | 120(H)×240(W)×150(D)mm. Approx. 2.5 Kg. |
|
| Optional Accessories | Calculator for prompt adjustment and calculation of direction and weight at which correction should be made. |
