OM-CP-RHTEMP1000IS

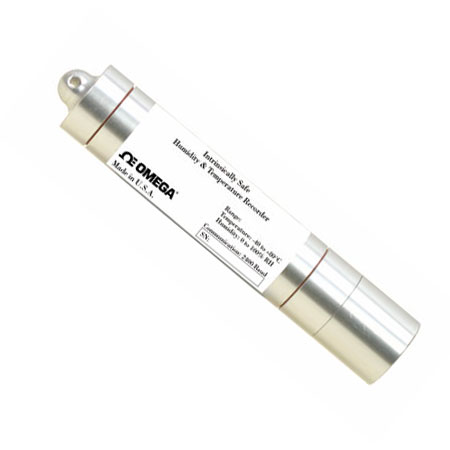

The OM-CP-RHTEMP1000IS humidity and temperature logger is a rugged, water resistant, battery powered, stand alone device which can be used to automatically record humidity and temperature. This all in one compact, portable,easy to use device is able to measure and record up to 21,845 humidity and temperature measurements. The OM-CP-RHTEMP1000IS is ideal for harsh environments. Its real time clock ensures that all the data is time and date stamped. The storage medium is non-volatile solid state memory, providing maximum data security even if the battery becomes discharged. The device can be started and stopped directly from your computer and its small size allows it to fit almost anywhere. The OM-CP RHTEMP1000 makes data retrieval quick and easy. Simply plug the device into an empty COM port and our user- friendly software does the rest.

The software converts your PC into a real time strip chart recorder.Data can be printed in graphical or tabular format and can be exported to a text or Microsoft file.



Spesification

Temperature Sensor:
Semiconductor
Temperature Range:
-40 to 80°C (-40 to 176°F)
Temperature Resolution: 0.1°C
Calibrated Accuracy: ±0.5°C
Humidity Sensor: Semiconductor
Humidity Range: 0 to 100% RH
Humidity Resolution : 0.5% RH
Calibrated Accuracy: ±3% RH
(±2% RH typical at 25°C)
Respones Time: 90% change in 60 seconds
in slow moving air
Specified Accuracy Range:
10 to 80% RH,10 to 40°C
Real Time Recording: May be used with
PC to monitor and record data in real time
Start Time: Start time and date are programmable
through software, up to six months in advance
Recording Interval: 2 seconds
to 12 hours selectable in software
Temperature Calibration:
Digital calibration through software
Calibration Date: Automatically recorded within device
to alert user when calibration is required
Power: 3.6 V lithium battery included
Battery Life: 1 year typical
Data Format: Date and time
stamped,°C,°F,°K,°R;%RH,
mg/ml water vapor concentration
Time Accuracy: ±1 minute per month at 20°C
when RS-232 port is not in use
Computer Interface:
PC serial, RS-232C COM or USB
(interface cable required) 2400 Baud
Software: XP SP3/Vista and 7 (32-Bit and 64-Bit)
Operating Environment:
-40 to 80°C (-40 to 176 °F),
0 to 100% RH non-condensing
(case properly sealed)
Dimensions:
138 mm dia x 26 mm L (5.4 x 1.0")
Weight (Aluminum): 145 g (5 oz)
Weight (Stainless): 285 g (10 oz)
