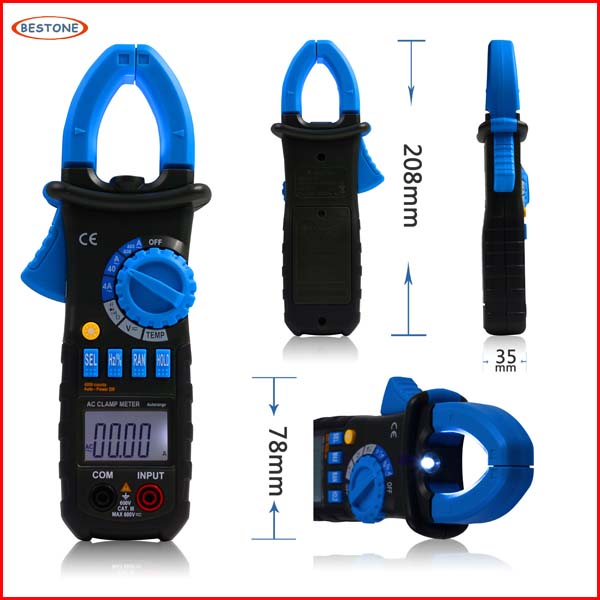

Digital AC Clamp Meter ACM02
Feature
* Jaw Size:F26mm
* AC Current Measurement up to 600A
* Tests AC/DC Voltage, AC Current and resistance
* Capacitance, frequency and duty cycle measurement(ACM02)
* Type-K thermocouple contact temperature measurement(ACM02)
* Work light and back light
* Diode check and continuity test
* Data hold and auto power off
Spesification
Specifications |
Range |
Accuracy |
|
DC Voltage |
400mV/4V/40V/400V |
±(0.8%+2) |
|
AC Voltage |
4V/40V/400V |
±(1.0%+10) |
|
AC Current |
4A/40A/400A/600A |
±(3.0%+10) |
|
Resistance |
400Ω/4kΩ/40kΩ/400kΩ/4MΩ |
±(1.2%+2) |
|
Capacitance |
50nF/500nF/5μF/50μF/100μF |
±(4.0%+5) |
|
Frequency |
50Hz/500Hz/5kHz/50kHz/100kHz |
±(1.0%+2) |
|
Duty cycle |
1%~99% |
±(3.0%+2) |
|
Temperature(°C) |
-20°C~750°C |
±(2.0%+2) |
|
Feature |
|||
Display |
4000 Counts |
||
Auto and manual range |
Yes |
||
Data hold |
Yes |
||
Work light |
Yes |
||
Diode test |
Yes |
||
Continuity |
Yes |
||
Back light |
Yes |
||
General |
|||
Power supply |
1.5V(AAA)x3 Batteries |
||
Weight |
Approx 245g |
||
Size |
280mmx78mmx35mm |
||
Jaw Size |
Ø26mm |
||
Safety Rating |
CE CAT.III600V |
