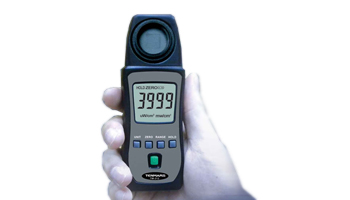

Light Meter UVAB TM-213
Untuk memesan, silahkan tekan tombol . Anda bisa memesan barang secara Online.
Anda juga bisa memesan via telephone. Silakan hubungi sales consultant, Hotline kami di, sales@alatuji.com sales Consultant kami akan menjelaskan detail produk dan harga terbaru. atau email ke alamat
Feature
Wavelength :290~390nm
DISPLAY : 3 3/4 digits LCD with backlit maximum reading 3999.
FUNCTIONS:
- Data hold.
- Low battery indication.
- Zero function.
- Over indicator: Display shows "OL".
FEATURES:
- Highly reliable direct reading Instrument designed expressly for measuring
- light intensity at the wafer plane of mask aligners.
- UV curing light sources, and any other UV light source.
APPLICATIONS:
The UVA Sensor is ideal for measuring mercury, xenon, metal halide or fluorescent lamps, commonly used for studies in the UVA region, as well as sunlight.
Spesification
TM-213 UVAB measurement |
|
Measuring range |
4000uW/cm2, 20mW/cm2 |
Resolution |
1uW/cm2, 0.01mW/cm2 |
Accuracy |
-/+4(%FS + 2dgt) FS : full scale |
Wavelength |
290~390nm |
Sample Time |
Approx. 0.4 sec. |
Power Supply |
2 batteries 1.5V AAA |
Battery life |
Approx. 100 hourr |
Weight |
Approx. 90g |
Size |
133(L)mm x 48(W)mm x 23 (H)mm |
