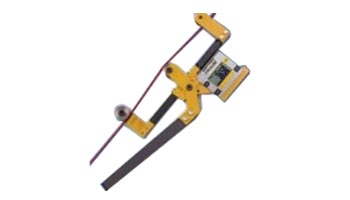

Cable Tension Meter | QB-10000
The new QB-10000 Tension Meter provides a quick and easy way to accurately measure and display all of the elevator traction cable tensions in a set while the tension on a single cable is being adjusted. This makes it extremely easy to balance the tensions of cables in a set of elevator cables or any other multiple-line array of tension cables, such as tower and stack guy wires, crane rigging sets and platform lifts, etc. The digital display also shows the average tension of the set as well as the total tensile load.
The QB-10000 installs easily, measures cable tension up to 10,000 lbs directly, stores readings and is removed from the cable in seconds. No lookup or reference to correction or conversion charts is required. Writing down measurements for comparison purposes is also not required.
Balancing the tensions on a set of cables takes minutes instead of hours and can be done by a single person, working alone, instead of two or three.
Feature
- DIRECT READING -- no reference to conversion charts required
- Minimum training time required. Significant labor and time savings over alternative methods
- View tensions on all cables in the set, average tension and total tensile load on the back-lit display - instantly. Display also features full text prompts
- Balance tensions in multiple lines in minutes
- Accommodates wide range of cable types and sizes, from 3/16” to 1”
- Factory-provided 5-line display for four (4) cables can be optionally expanded to as many as 16 cables by keypad entry and scrolling
- One (1) set of sheaves for wire rope sizes from ¼” to ¾” is included. Other size sheaves are optionally available
- Calibration for three (3) wire rope sizes is included. They are for steel, 1/2", 9/16” and 5/8”, all 8x19. Calibration for up to five (5) additional sizes or types is optionally available
- Safety improvement gained by measurement method
- Highly visible yellow finish with easy to use soft-key interface
- Powered by two (2) standard, easily-replaced AA batteries to provide long life between changes
- 2-Year Warranty
