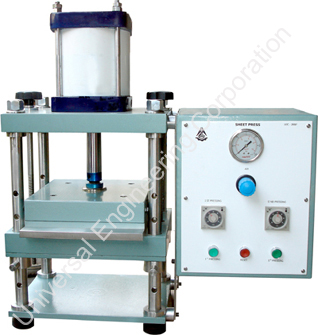

AU - 2007 C Sheet Press
Pneumatically operated sheet press suitable for square sheet with control Panel with 12 & 6 minutes pressing with adjustable timing for two sequential pressing of sheets. Pressing force maximum 16kN. Maximum sheet size 330x350 mm.
Standard Model sheet size 165 x 165 mm.
Suitable for other sizes: 200 x 200, A4 size.
Spesification
SPECIFICATIONS
Press Plattens |
: 350 x 350mm |
Stroke length |
: 75 mm |
Travelling |
: 210 mm |
Pressing load |
: 16 kN |
Pressing cycle |
: two number solid stat timer for from 0-30 and may be set in seconds, minuts hours and 10 hours. |
The press top made of duralumin for rigidity and lightness is secured by 4 rapid action clamping and release nuts.
Control panel houses two timers – one of 12 min and other of 6 min push button switches and pressure gauge.
Precision air pressure and air flow regulators are housed in the cabinet.
A fail – safe pressure relief valve is fitted to the air storage chamber, which functions automatically if the inlet supply pressure exceeds the maximum.
Press plattens are of stainless steel.
Centering template made of aluminum is supplied to adjust the location of sample sheets
Multi-number samples can be placed simultaneously for pressing.
Working pressure 7 Kg/cm2
<po
Pneumatics Type
Control Panel with 12 & 6 minutes timers and start, stop switch.
Valve fitted to Air Storage Container.
Power Supply - 220V, Single Phase 50 Hz
Shipping Data |
Ordering Data |
|
Net Weight |
Model No. |
|
Gross weight |
Voltage |
|
Dimension |
Frequency |
Changes:
UEC products undergo continuous development. The technical data in this catalogue are therefore subject to change
