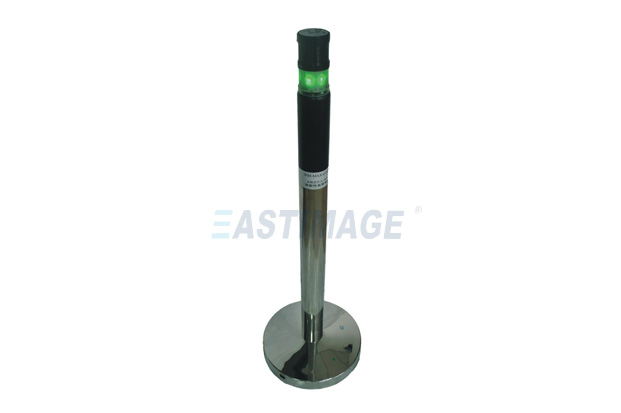

SIM-MAX G3920 Pedestrian&Luggage Portal Radiation Monitor
Product Introduction
G3920 is a pedestrian & luggage monitoring system for detecting the radioactive materials and identifying the radionuclides. G3920 performs rapid, convenient, sensitive detection and identification of Special Nuclear Materials(SNM), medical radionuclides, industrial radionuclides and Natural Occurring Radioactive Materials(NORM).
Feature
Features
High sensitive NaI(Tl) gamma detector
High performance 6LiI(Eu) scintillator neutron detector optional
Advanced and rapid spectroscopic analysis for SNM, medical radionuclide, industrial radionuclide and NORM detection and identification
Automatic spectrum-stabilizing technique, high adaptability to circumstance
Audible & visible alarm indication with adjustable alarm levels
Spesification
Specifications
No. ...........................Gamma Detector......................................Neutron Detector(optional)
Detector..........................0.2 litre NaI(Tl) scintillator.........................6LiI(Eu) scintillator or Helium-3 Neutron Proportional Counters
Energy range....................25 KeV ~ 3.0 MeV.....................................thermal neutron to 14MeV
Sensitivity........................an increase in 0.1μSv / h against the background level of 0.2μSv / h, alarm in less than 1 second. detection probability: 99.9%
Monitoring region..............0.1 to 2 meters height & 1.5 meters width with bilateral detectors
False alarm rate................≤ 0.1%
Communication interface.....wire RJ45
Operation temperature........-20 ºC to 50 ºC
Power supply......................Rechargeable lithium battery (≥8 hours),110/220 V AC
Appearance dimension..........Φ 76mm(diameter)×1100mm(height)
Weight..............................≤10 kg
Applications
Customs; Borders; Airports; Subway; Nuclear powers; High-speed Railways; Hospitals; Airports; Large-scale activities
