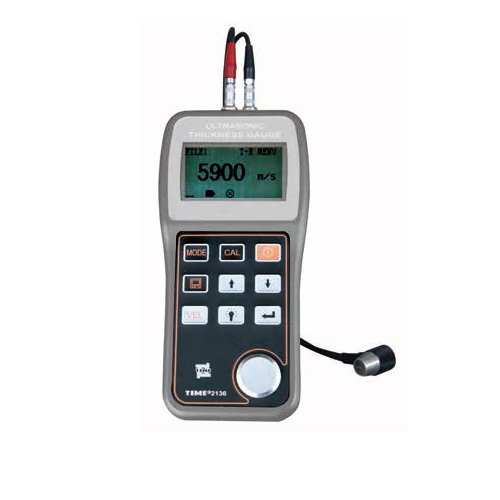

Ultrasonic Thickness Gauge TIME2136



The principle of Ultrasonic Thickness Gauge is ultrasonic pulse reflection. The pulse was reflected back to the probe when the ultrasonic pulse sent by the probe reaches the material interface through the tested object. We can get the thickness of the measured material based on the accurate time that the ultrasonic transits in the material. Time Ultrasonic Thickness Gauge series are non-destructive testing instrument integrated with modern scientific electronic and measuring technology. They are equipped with microcomputers that can analyze, handle and display the current data. Furthermore, they are integrated with highly optimized measuring circuit, which makes them have the advantage of high measurement accuracy, wide measurement range, being easy to operate, stable working and so on. TIME2136 is the latest generation of portable ultrasonic thickness gauges that TIME GROUP launches. The double crystal probe and multiple reflection penetrating coating measurement mode has the advantage of no need to wipe off the coating of the tested point, which will save the time and cost for users.


Feature

  • Measure through coated surfaces and eliminate the thickness of the paint using a dual element style transducer in echo-echo mode
  • Identify the standard transducer automatically, or preset the transducer frequency manually
  • Transducer TSTU17 and TSTU32 are optional to measure various materials
  • Connect to TIME TA230 printer or PC via RS232 interface
  • Upper /lower limits pre-setting and sound alarm
  • differential mode shows the difference between the test thickness value and the use-setting thickness range.
  • Memory of 500 test data
  • Resolution 0.001mm and 0.01mm selectable for your use

Spesification

Measuring range(depends on probe) Transducer 5PØ10/90°:
1.2-200mm (steel in T-E testing mode)
3~20mm(steel in E-E mode)
Transducer TSTU17:
0.6mm~50mm(steel in T-E testing mode)
Transducer TSTU32:
5mm~300mm(steel in T-E testing mode)
Display resolution 0.001mm or 0.01mm
Sound speed 1000~9999m/s
Display Backlight
Measuring accuracy ±1%H?0.1mm
(H means the thickness of tested plate)
Data output RS232
Calibration plate 4.0mm(steel)
Power AA batteries 1.5V (2Pcs)
Measuring units mm/inch
Dimensions 152×74×35
Weight 220g
