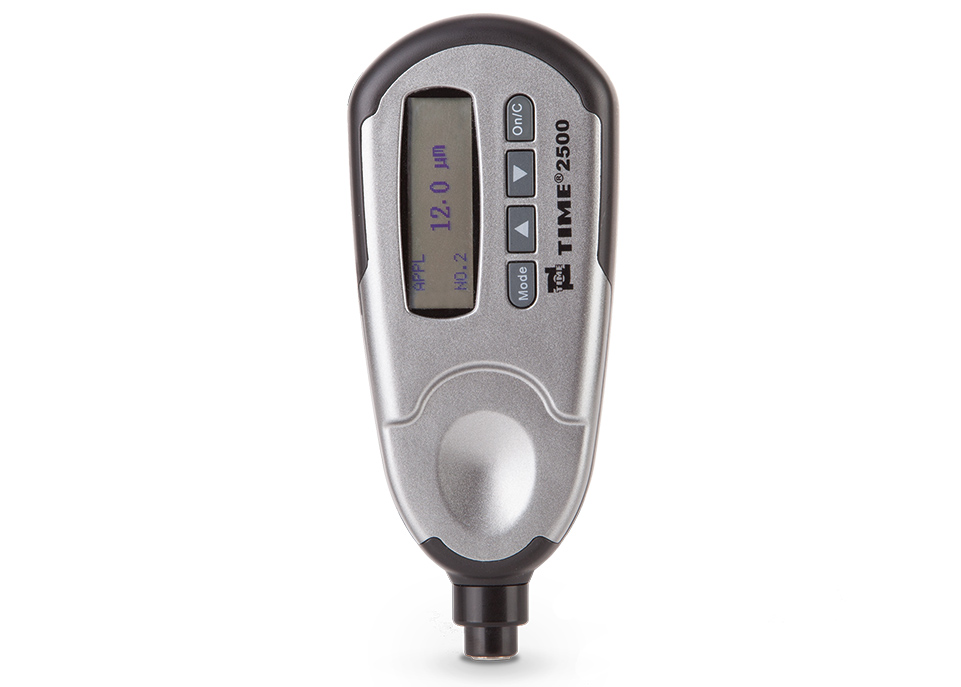

Coating Thickness Gauge TIME®2500 Economic F Type



TIME®2500 is an economical digital coating thickness gauge that uses magnetic induction method to measure non-magnetic coatings (e.g. paint, plastic, porcelain enamel, copper, zinc, aluminum, chrome etc.) on ferrous substrates (e.g. iron, nickel etc.). This paint thickness meter is ideal for painted surface testing, car paint inspection, coated material testing, and quality control applications.


Feature

Features

  • Magnetic induction (F), measuring the thickness of non-magnetic materials (e.g. Paint, plastic, porcelain enamel, copper, zinc, aluminum, chrome etc.) on magnetic materials (e.g. iron, nickel etc.). Zero point calibration and two-point calibration to correct the system error of the probe
  • Features two working modes: DIRECT and BATCH & two measuring ways: CONTINUE and SINGLE
  • Statistics include the mean, maximum, minimum, test numbers and standard deviation.
  •  Memory of 500 data
  • Deletion of current data, calibrated data, limit data and all data stored.
  • Integrated with printer to print the statists values if needed
  • Low battery indication and error alarm
  • Buzz during operation for indication
  • Backlight for the screen
  • Auto or manual shutdown



Standard Delivery     Optional Accessory
Main unit  1   TA230 Printer
Calibration foil set  1
Substrate  1
AAA1.5V battery  2
TIME certificate  1
Warranty card  1
Instruction manual  1

Spesification

Technical Specilfication

Probe Types

F

Measuring methods

Magnetic induction

Measuring range

0~1250μm

Display resolution

0.1μm

Tolerance

Zero point calibration (μm)

±(3%H+1)

Two points calibration(μm)

±[(1%~3%)H+1]

Measuring condition

Min.curvature radius(mm)

convexity 1.5

concave 9

Min.testing area diameter(mm)

Ø7

Critical thickness of substrate (mm)

0.5

Power

AAA 1.5V Battery (2 pcs)

Working temperature

0~40?

Dimensions (mm)

145×60×28

Weight (g)

132
