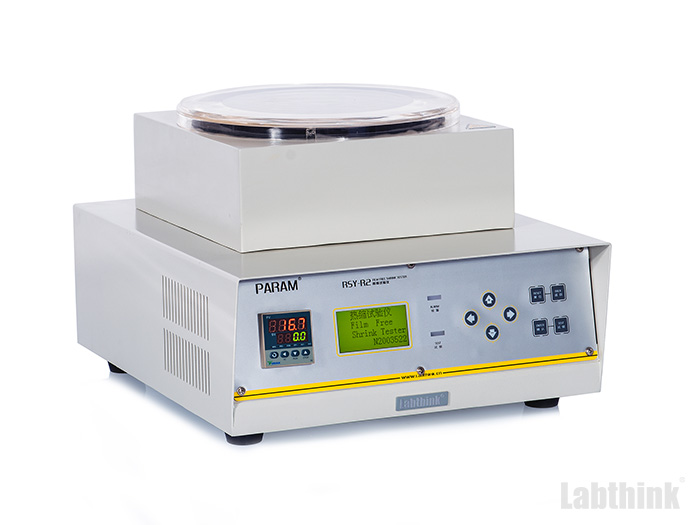

RSY-R2 Film Free Shrink Tester



This instrument is professionally applicable to the determination of heat shrinking performance and dimensional stability of various films, heatshrinkable tubes, hard PVC films for tablets, and back-sheets in the fluid medium at different temperatures.




Feature



  • Digital P.I.D. temperature control technology ensures the preset temperature to be reached rapidly without any fluctuation
  • The instrument is heated through fluid medium, which could provide the stable test environment
  • Automatic timer function to efficiently guarantee the accuracy of test data
  • The instrument is controlled by micro-computer with LCD, PVC operation panel, and menu interface
  • Standard clamp wire mesh support could make the test done smoothly




Spesification

Technical Specifications

SpecificationsRSY-R2
Temperature Range Room temperature ~ 175°C
Temperature Control Accuracy ±0.3°C
Temperature Measuring Accuracy ±2°C
Specimen Size ≤140 mm x 140 mm
Power Supply 220VAC 50Hz / 120VAC 60Hz
Instrument Dimension 440 mm (L) x 370 mm (W) x 310 mm (H)
Net Weight 24 kg



This instrument conforms to the following standards:
GB/T 13519, ASTM D2732



Basic Applications
  • Films
    The instrument can be used to test the heat shrinking performance of various films in fluid medium at different temperatures, e.g. PE heatshrinkable films used for packages of liquor, mineral water and beverages as well as PVC, POF, OPS, and PET which are available for various packages.



Standard Configurations
Instrument, 5 Sets of Clamp Wire Meshes and 3 Pieces of Clamp Wire Mesh Support
Optional Parts
Clamp Wire Mesh and Clamp Wire Mesh Support
