Model: VO622B01

• Description
• Features
• Specification
• Order
• Video
• Testimoni
• Download PDF

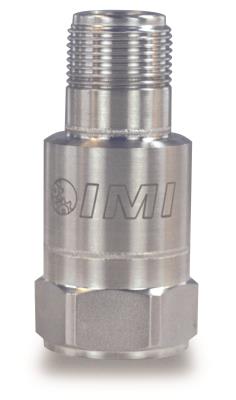

General purpose, industrial, ceramic shear ICP® accel, 100 mV/ips, 0.2 to 15k Hz, top exit, 2-pin conn., frequency sweep ISO 17025 accredited calibration

Feature

• Sensitivity: (±10%) 100 mV/in/sec (3937 mV/m/sec)
• Frequency Range: (±3dB) 180 to 540000 cpm (3 to 9000 Hz)
• Sensing Element: Ceramic
• Measurement Range: ±50 in/sec (±1.27 m/sec)
• Weight: 3.3 oz (94 gm)

Spesification

	English:	SI:
PERFORMANCE
Sensitivity (±10 %)	100 mV/in/sec	3937 mV/m/sec	[1]
Measurement Range	±50 in/sec	±1.27 m/sec
Frequency Range (±10 %)	240 to 270000 cpm	4 to 4500 Hz	[2][4]
Frequency Range (±3 dB)	180 to 540000 cpm	3 to 9000 Hz
Resonant Frequency	1800 kcpm	30 kHz	[5]
Broadband Resolution (1 to 10000 Hz)	450 µin/sec	11.4 µm/sec	[5]
Non-Linearity	1 %	1 %	[3]
Transverse Sensitivity	≤5 %	≤5 %
ENVIRONMENTAL
Overload Limit (Shock)	5000 g pk	49050 m/s² pk
Temperature Range	-65 to +250 °F	-54 to +121 °C
Temperature Response	See Graph %/°F	See Graph %/°F	[5]
ELECTRICAL
Settling Time (within 1% of bias)	≤30 sec	≤30 sec
Excitation Voltage	18 to 28 VDC	18 to 28 VDC
Constant Current Excitation	2 to 10 mA	2 to 10 mA
Output Impedance	<100 Ohm	<100 Ohm
Output Bias Voltage	8 to 12 VDC	8 to 12 VDC
Spectral Noise (10 Hz)	40 µin/sec/√Hz	1.12 µm/sec/√Hz	[5]
Spectral Noise (100 Hz)	7.0 µin/sec/√Hz	0.18 µm/sec/√Hz	[5]
Spectral Noise (1 kHz)	0.4 µin/sec/√Hz	0.01 µm/sec/√Hz	[5]
Electrical Protection	RFI/ESD	RFI/ESD
Electrical Isolation	>100000000 Ohm	>100000000 Ohm
PHYSICAL
Size - Hex	7/8 in	22 mm
Size - Height	2.06 in	52.3 mm
Weight	3.3 oz	94 gm
Mounting Thread	1/4-28 Female	1/4-28 Female	[6]
Mounting Torque	2 to 5 ft-lb	2.7 to 6.8 Nm
Sensing Element	Ceramic	Ceramic
Sensing Geometry	Shear	Shear
Housing Material	Stainless Steel	Stainless Steel
Sealing	Welded Hermetic	Welded Hermetic
Electrical Connector	2-Pin MIL-C-5015	2-Pin MIL-C-5015
Electrical Connection Position	Top	Top

All specifications are at room temperature unless otherwise specified.

Product Notes

[1] Conversion Factor 1g = 9.81 m/s².
[2] 1Hz = 60 cpm (cycles per minute).
[3] Zero-based, least-squares, straight line method.
[4] The high frequency tolerance is accurate within ±10% of the specified frequency.
[5] Typical.
[6] 1/4-28 has no equivalent in S.I. units.
[7] See PCB Declaration of Conformance PS023 or PS061 for details.

Accessories:

Supplied
081A40	Mounting Stud	(1)
ICS-8	NIST-traceable single-axis amplitude response calibration from 600 cpm (10Hz) to upper 10% frequency.	(1)

Optional Versions:

(EX) Hazardous Area Approval- contact factory for specific approvals

	ENGLISH	SI

(M) Metric Mount

	ENGLISH	SI

Accessories:
	M081A61	Mounting Stud	(1)
