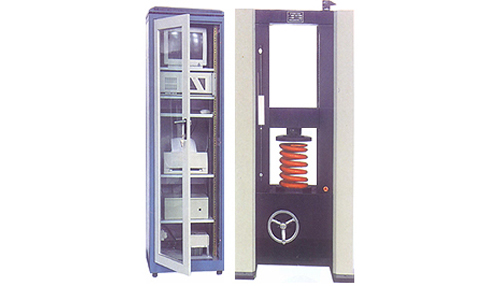

TLS-W50KN
Spesification
Max load (N) | 1 | 2 | 5 | 10 |
20 | 50 | 100 | 200 | 500 | 1000 | 2000 | 5000 | 10000 | 20000 |
Display range (N) |
0-1 | 0-2 |
0-5 |
0-10 |
0-20 |
0-50 |
0-100 |
0-200 |
0-500 |
0-1000 |
0-2000 |
0-5000 |
0-10000 |
0-20000 |
Accuracy range (N) |
10% - 100% of total scale | |||||||||||||
Min. read of displacement (mm) |
0.01 | |||||||||||||
Min. read of displacement (mm) |
110 | 90 | 240 | 270 | 650 | 1000 | ||||||||
Compression space (mm) |
70 | 70 | 220 | 250 | 650 | 1000 | ||||||||
Compression space (mm) |
70 | 70 | 220 | 250 | 650 | 1000 | ||||||||
Compression plate diameter (mm) |
30 | 48 | 60 | 110 | 130 | 200 | ||||||||
Stroke distance (mm) |
70 | 70 | 70 | 100 | 650 | 1000 | ||||||||
Load method | Manual Load method (has inching adjusting function) | Manual load | Manual or Motorized | |||||||||||
Net weight | 20 | 30 | 90 | 200 | 300 | |||||||||
Machine dimension (mm) |
Load frame 180x275x500 Electrical part 280x275x 500 |
525x300x635 | 810x585x950 | 600x400x1600 | 740x575x1600 | |||||||||
Accuracy rate | Load accurate class 0.5 | |||||||||||||
Deformation display error (μm) |
Less than (50 +0.15|) | |||||||||||||
Power supply | 220V single phase (50 or 60 Hz) | 380V triphase (50 or 60Hz |
