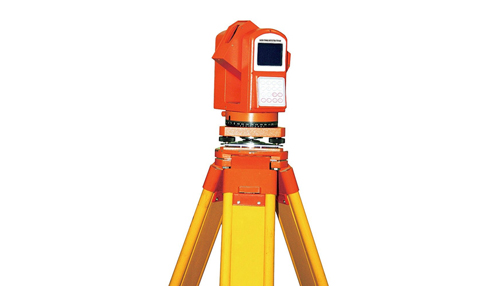

LASER TUNNEL DETECTOR TTD100



TTD100 is designed for detecting the tunnel cross-section fast and accurate, especially for data acquisition in the construction inspection, completion inspection and quality control.


Feature

  • High-precision angle encoder and laser ranger
  • At least 100 sets of cross-section data can be recorded on the scene
  • Data processing, mapping and reporting can be available with the processing software
  • Integrated design, small size, light weight and easy to use
  • Manual and automatic adjustment are available for full angle location
  • Special designed battery clip to facilitate the replacement of batteries

Spesification

Method Angle encoding
Measuring radius 0.3m-60m
Accuracy 1 mm
Measuring time <3mins
Measuring range of angle 30° - 330°
Memory for each measurement More than 100 sets
Interface RS232 and USB
Operating temperature -20 + 60
Dimension 150mm x 100mm x 270 mm
Net weight 4.5 kg
