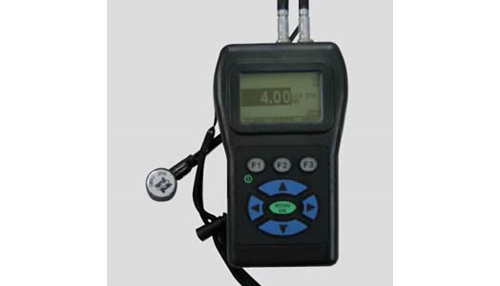

TT900

Alat uji tak merusak (Non Destructive-NDT) untuk pengujian atau mengukur ketebalan semua bahan material seperti pipa, tank, kaca dan lain-lain dengan menggunakan teknologi ultrasonic.

Two standard probes delivery: both echo-echo transducer and straight transducer
With function of echo-echo (E-E) measurement and auto gain control (AGC), users will get to know the thickness of substrate , even though it is covered by coating
Difference mode and velocities setting
Vibration alarm and sound & light alarm settings
Velocities calibration and zero calibration
Measurement units inch, mm and microsecond
Measurement results holding
Easy operating keypad by left/right switch
High frequency scanning technique available
Superior waterproof and dustproof plastic shell

Measurement range	0.75~508mm
velocity range	508~18699m/s
measurement rate	4/s and 20/s in fast mode
bandwith	0.5MHz~20MHz (-3dB)
resolution	0.01mm (0.001"),0.1mm(0.01")
velocity calibration range	0.508mm/µS ~ 18.699 mm/µS (0.0200mm/µS~0.7362mm/µS)
display	128x64 Graphics LCD monochrome
Battery life	Up to 200 Hours (40 hours with backlight on)
Operating temperature	-20⁰ C ~ + 50⁰C
Measuring temperature	-20⁰ C ~ + 500⁰C (according to the probes)
Dimensions(mm)	127x76x32
Weight(g)	0.23
