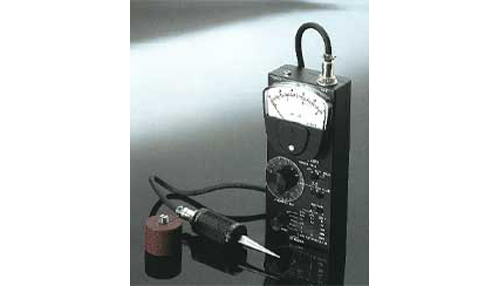

VIBRATION METER mini vibro with analyzer model-1022a



Compact and lightweight precision vibrometer for measuring vibrations of rotating and reciprocating machines, etc. Applications include measurements of acceleration, velocity and displacement, MINI-VIBRO is most suitable for measuring very small vibrations. Built-in frequency analayzing filter allows frequency analysis in a simple manner. Velocity measuring function is conformed to JIS B0907(ISO2954)"Standard for Vibration Severity Measuring Instrument". Vibration pickup can be hand-held or fixed with screws(M10) Analog indication makes reading of fluctuating vibrations easier.
Recording output for recorder, oscilloscope, FFT analyzer, etc. Pickup can be hand-held or fixing with a screw(M10). Optional magent(MG-2)available for ease of fixing Pick up. Power supply(dry cell 006P)assures continuous measurement for 24 hours.


Feature

Mini-vibro   MODEL-1022A   1pc
Dry cell   006P(9V)   1pc
Electro ynamic pickup   MODEL-2008   1pc
Carrying case

  1pc
Contact probe

  1pc
Instruction manual

  1copy
Pickup cable 1m   CA2411-1   1pc
Magnet holder   MG-2   option
Output cable 1m   CA1311-1   1pc




Spesification

Measurement full scale range   (10 dB step,5 ranges)
a)Acceleration range   0.3,1,3,10,30m/s2PEAK
b)Velocity range   1.3,10,30,100mm/sRMS
c)Displacement range   10,30,100,300,1000μmp-p
Rectifier   True RMS
Indication   Acceleration…EQ Peak Velocity…True RMS Displacement…EQ P-P
Frepuency range   10-1000Hz
Analysis filter   10-1000Hz Q=10
Accuracy   Within 3% on the amplitude
measurement of sinusoidal wave 80Hz 10mm/sRMS
AC Output   ±1V/F.S
DC Output(option)   +1V/F.S
Temperature range   Operation 0°C-50°C

  Warehouse -20°C-+70°C
Power supply   Dry cell 006P(9V) ‚Ppc
16 hours or more continuous operation
Dimensions, weight   Mini Vibro W85×H190×D55mm 700g
Pickup H72×D30mm 140g
Contact pin L55mm 20g
