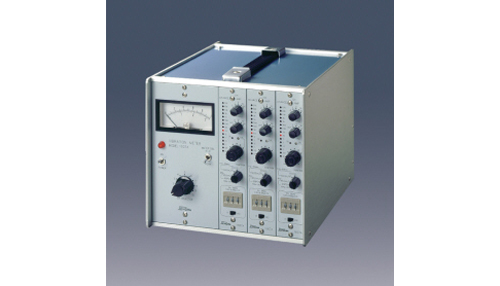

This a VIBRATION METER as Small charge vibrometer capable of multichannel simultaneous measurement. General-purpose type small vibrometer capable of measuring three modes of acceleration, velocity and displacement. Wide-band and capable of measuring from a minute level to a large level. Capable of selecting a band matching a measurement object because of the built-in high-pass/low-pass filter. Capable of appropriately using various sensors with ease by the easy setting of the sensor’s sensitivity. Capable of using a remote charge converter and a detector with a built-in preamp in addition to an ordinary charge-output type detector.
| 3CH mounted | ||||
| Amp Unit | MODEL-1607A | 3pc | ||
| Power Supply Unit | MODEL-1607A-10M | 1pc | ||
| Channel Case | MODEL-1607A-23 | 1pc | ||
| Instruction manual | 1copy | |||
| *Capable of multichannel, max. 10-channel. | ||||
 Input Rear Panel BNC Connector, Charge-Output Sensor/ Built-in Preamp |
||
| Charge input | PU SENS×1:1.00-9.99pC/G | |
| PU SENS×10:10.0-99.9pC/G | ||
| Max input charge | 10,000pC | |
| Voltage Input Connector | PU SENS×1:1.00-9.99mV/G | |
| PU SENS×10:10.0-99.9mV/G | ||
| Max input voltage | ±10V | |
| Supply current | 2mA, 15VDC(0.4-4mA) | |
| Output |
||
| AC OUT(BNC) | Vibration waveform output | |
| ±1V/FS Output resistance 100Ω 5mA Max.current | ||
| DC OUT(BNC) | Trend recording as level output | |
| 0-1VDC Output resistance 100Ω 5mA Max.current | ||
| Overload lamp | When the linear range is exceeded in the internal circuit, LED lamp is on. |
|
| Measuring Range |
||
| ACC1(G) | 1Hz-50kHz(1dB), 2Hz-20kHz(0.5dB) | |
| PU SENS×10:0.0316/0.1-100/316/FS | ||
| PU SENS×1:0.316/1-1000/3160/FS | ||
| ACC2(m/s2) | 1Hz-50KHz(1dB), 2Hz-20kHz(0.5dB) | |
| PU SENS×10:0.316/1-1000/3160/FS | ||
| PU SENS×1:3.16/10-10000/31600/FS | ||
| VEL(cm/s) | 3Hz-(0.5dB) | |
| PU SENS×10:0.316/1-1000/3160/FS | ||
| PU SENS×1:3.16/10-10000/31600/FS | ||
| DISP(mm) | 3Hz-(0.5dB) | |
| PU SENS×10:0.1/0.316-316/1000/FS | ||
| PU SENS×1:1/3.16-3160/10000/FS | ||
| DISP2(mm) | 10Hz-(0.5dB) | |
| PU SENS×10:0.01/0.0316-31.6/100/FS | ||
| PU SENS×1:0.1/0.316-316/1000/FS | ||
| Filter |
||
| High-pass filter(Hz) | OUT(1Hz)/3/10/30/100 | |
| Low-pass filter(Hz) | 300/1k/3k/10k/OUT(50KHz) | |
| The Others |
||
| Accuracy | Within 3% at 80Hz,100pC input | |
| Cal signal | 80Hz,±1V max. sinusoidal wave | |
| Temperature, Humidity | 0-50ºC,90%RH max. | |
| Dimensions, weight | 35(W)×177(H)×230(D)mm 0.7kg | |
| Power Supply Unit MODEL-1607A-10M |
||
| AC100V ±10%, CAL signal:80Hz ±1V sinusoidal wave, 10CH selectable monitor meter. | ||
| Dimensions, weight | 90(W)×177(H)×230(D)mm 1.1kg | |
| Channel Case, weight | 3CH- 1.8kg 6CH- 2.5kg | |
