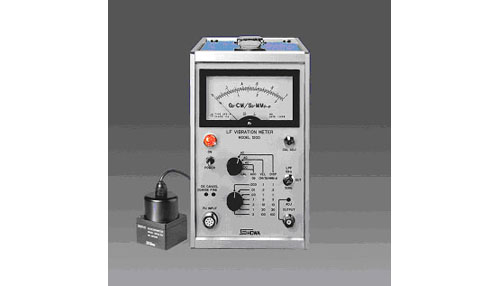

VIBRATION METER Servo Model-1200

Applicable Detectors		Model-2200 servo-type accelerometer
Measurement Range
a) Acceleration		±0.03 , 0.1 , 0.3 , 1,3 , 10, 30m/s²FS
b) Velocity		±0.1 , 0.3 , 1 , 3 , 10 , 30 , 100cm/sec FS
c)Displacement		0.1 , 0.3 , 1 , 3 , 10 , 30 , 100mm P-P FS
		Switchable in seven 10dB steps
Frequency haracteristics
		DC ACC: DC-100Hz ±5% max
		AC ACC: 1Hz-100Hz ±5% max
		AC VEL: 1Hz-100Hz ±10% max
		AC DISP: 1Hz-100Hz ±10% max
Accuracy		3% max. for AC 16Hz 10m/s²
DC Cancel		Zeroes the static acceleration for the "DC ACC"
		Measurement range plus/minus the ±9.8m/s² range
Low Pass Filter		-12dB/OCT with 3 ranges of 10Hz, 50Hz, OUT(250Hz)
Output calibration		Possible by (16Hz) oscillator built into power unit
Output		±1V/FS(10KΩ), ±5mA/FS(20Ω)
		AC 100V±10% 50/60Hz 10VA
Dimensions, Weight		(W)120×(H)200×(D)200mm 3kg
Servo accelerometer Model-2200
Measuring range		±50m/s²
Sensitivity		V/9.8(m/s²)
Resolution		2×10^-5m/s²
Frequency response		DC-100Hz
Power requirement		±15V
Temperature		-25-+60°C
Structure		Dust and moisture proof
Output Cable		3m with connector
Vibration		200m/s² max.
Shock		1000m/s² max.
Weight(without cable)		300g approx.

The Model-1200 VIBRATION METER is suited to high-response, Low-frequency vibration measurement using detectors having servo-accelerometers.
