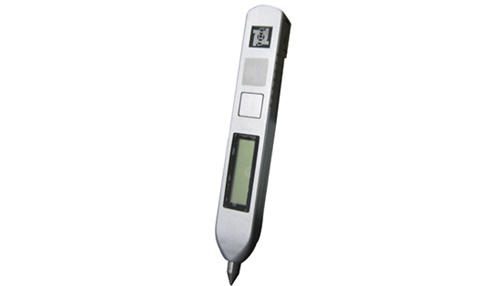

VIBRATION PEN TV260

Used for fast failure detecting of motor, electric fan, pump, air compressor, machine tools and so on.
Compact size, small weight, easy handling
Prompt testing of vibration on the workshop machines
For quick checking of unbalance misalignment, bearings and gears
Guard against mechanical malfunction
Holding tested value for 40 seconds
Automatic switch off after 40 seconds
TV200 is used specially for velocity testing
TV220 is used specially for displacement testing
TV260 is used for testing of acceleration, velocity and displacement

Model	TV200	TV220	TV260
Parameters	RMS of vibration velocity (mm/s)	Displacement	Acceleration, Velocity, Displacement
Testing range	Velocity: 0.1mm/s~ 199.9mm/s	Displacement: 0.01 mm ~ 1.999 mm (peal~peak)	Acceleration:0.01m/S2-199.9m/S2(peak) Velocity: 0.01mm/s-199.9 mm/s(RMS) Displacement: 0.001mm-1.999 mm (peak-peak)
Frequency range	Velocity: 10Hz ~ 1kHz	Displacement: 10Hz～500Hz	Acceleration: 10Hz ~ 1kHz Velocity: 10Hz ~ 1kHz Displacement: 10Hz ~ 500Hz
Accuracy	±5%
Display	31/2 digits LCD
Power supply	two button batteries(LR44 or SR44)
Battery capacity	Approx. 4.5 hours working continuously
Operating Temperature	0℃ ~ 40℃
Humidity	<85%
Dimension	150mm×22mm × 18mm
Dimension Weight	55g (including batteries)

This is a VIBRATION PEN type TV260 used for fast failure detecting of motor electric fan, pump, air compressor, machine tools and so on. the VIBRATION PEN working for knowing data information with fast condition it can be show acceleration, velocity and Displacement parameters.
