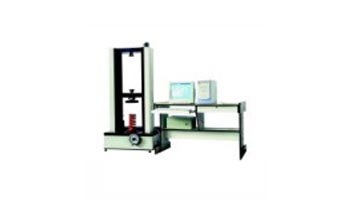

Spring Tension & Compression Testing Machine TLW-20000
- The software consists of function modules such as speed control, parameter input, data processing, result observation, record retrieval, chart display & print, data storage, etc.
- Diversified testing methods: test of residual height and deformation of spring under pre-set testing load; test of testing load under preset height or deformation of spring, etc.
- Multiple points data auto-collection: avoid the impact of spring stress on the testing data. Thus the total testing process is completely automatic.
- Overload protection and thus keep the load cell free of damage.
- Powerful data-processing and statistic functions; able to plot stiffness curve, calculate spring segment
stiffness, plot the normal distribution curve, calculate the index of process capability, etc.
- Stable and reliable operation and accurate measurement powered by the drive system which is constituted by CNC Motor speed-control system or imported advanced AC servo speed-controller as well as its motor and
|Max. test load (N)||20000|
|Classification of testing machine||Class 0.5, Class 1|
|Effective testing space (mm)||1000|
|Diameter of compression
|Min. reading of displacement (N)||0.01|
|Loading speed (mm/min)||50-500/0.05-500|
|Power supply||AC, 220V 50HZ|
