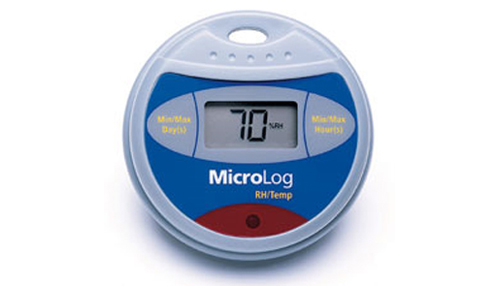

MicroLog Compact Data Logger



Dua model data logger yang tersedia:
   - Internal Suhu sensor ditambah satu input sensor eksternal
   - Internal Kelembaban dan Suhu sensor ditambah satu input sensor eksternal

Sebuah 8-bit data logger kompak yang mampu merekam data selama berbulan-bulan, bahkan jangka panjang pengiriman dan penyimpanan. Semua melihat data, ekspor data, dan pencetakan dilakukan melalui dua tombol fungsi. Kedua data logger Suhu dan Kelembaban Suhu data gabungan dan penebang yang tersedia bersama dengan berbagai macam sensor eksternal.

Feature

  • 8 year legacy of customer satisfaction, reliability and application experience
  • Up to 3 parameters: Temp, humidity and external sensors
  • Accurate, portable 8-bit (MicroLog) and 10-bit (MicroLogPRO) data loggers
  • All data viewing, export, and printing is done via two function keys
  • View up to 30 days min/max history on LCD screen
  • Water and dust proof (IP65/NEMA 4)
  • Infrared communication to portable thermal printer
  • Records months of data – up to 16,000 or 54,000 samples
  • External sensors include: Temperature, pH, 4-20 mA, 0-10 V and more
  • 4-20 mA and 0-10 V inputs allow for connection with any industry standard sensors
  • Sensor values are displayed in their own units on the LCD
  • MicroLab analysis software enabling powerful monitoring and data analysis capability

MicroLog Integrates:

  • Thermal portable printer - Print data readout by scanning MicroLog's external infrared sensor
  • Software - MicroLab automatically saves the data and produces daily status reports of your environment

Spesification

MicroLog Temperature
Range -30 to 50 °C
Resolution 0.5 °C
Accuracy 0.6 °C
MicroLog Humidity
Range 10 to 90 %
Resolution 0.5 %
Accuracy ± 3 %
MicroLogPRO Temperature
Range -40 to 80 °C
Resolution 0.2 °C (-40 to -20 °C)
0.1 °C (-21 to 50 °C)
0.2 °C (51 to 80 °C)
Accuracy (all ranges) ±0.2 °C
MicroLogPRO Humidity
Range 5 to 95 %
Resolution 0.1 %
Accuracy ±2 %
Output
MicroLog Display 2 digit 7-segment LCD
MicroLogPRO Display 4 digit 7-segment LCD
with decimal point
Communication • MicroLog IR - interface to portable HP printer
• RS232 communication to the PC with 19,200 kbps with
MicroLog and MicroLogPRO
• USB 1.1 (MicroLogPRO)
Memory
MicroLog 16,000 samples
MicroLogPRO 1 sensor - 52,000 samples
2 sensors - 26,000 samples
3 sensors - 16,000 samples
Power Supply
Internal lithium battery 3.6 V TL5902
Battery life Approximately 2 years (depending on
sampling rate)
Sampling Rate
User defined From 1 every 10 seconds to 1 every two hours
Dimensions
Thickness 22.9 mm
Diameter 72 mm
Weight 55 gr
