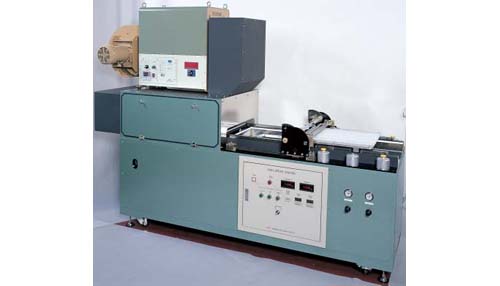

In the paper making, drying is done immediately after coating. The paper coating quality is significantly influenced by the coating and drying method. With this dryer, the raw paper is applied on the moving table, and coated with color by the blade or rod, and immediately it is dried while moving in the dryer room. It enables you to determine the coating quality of the raw sheet and coloring material, and migration during drying.
Specimen dimensions: 300 mm wide, 400 mm long
Base dimensions: 370 x 500 mm
Coating speed: max. 100 m/min. (optional 200 m/min.)
Coating method: blade and rod
Blade angle: 20 to 60 degrees
Drying method: hot air circulation (optional IR heater)
Drying temperature: max. 200'C
Hot air heater: 20 kW
Air flow rate: adjustable by inverter, max.15 m3/min.
Power source: three-phase 200/220 VAC 50/60 Hz 50 A
Air source: 0.5 MPa
Outer dimensions: 2400 x 780 x 1780 mm
Instrument weight: 550 kg
