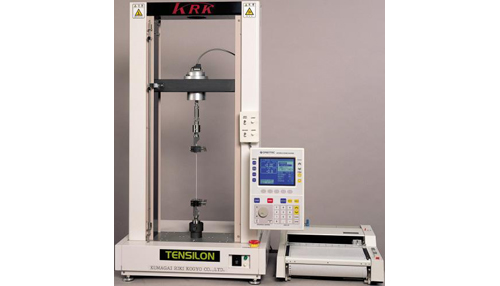

This constant-speed tensioning type tester is used for determining physical properties such as tensile strength, compressive strength, bending strength and elongation. Each operation can be done by a single operation. Such ease of operation is highly evaluated. This is a universal type tester featuring multiple functions and a high cost performance. This tester can test various materials used in diversified fields, including papers, plastics, rubbers,
textiles, metals, adhesives, paints, glasses, ceramics and compound materials. Test items: A specific jig (optional) is necessary for each test.
| Maximum load | 1 kN (100 kgf), 2.5 kN (250 kgf), 5 kN (500 kgf) |
| Loading position | Tensile and compressive strength tests can be made between the base and moving crosshead |
| Crosshead stroke | 1140 mm |
| Effective test width | 420 mm |
| Crosshead speed | 14 speeds 0.5,1,2,3,5,10,20,30,50,100,200,300,500, 1000 mm/min. |
| Crosshead speed setting | from 0.5 to 999.9 mm/min. at 0.1 mm/min. intervals |
| Traversing | manual crosshead lifting and lowering: low speed (1 mm/min.), mediu speed(50mm/min.), highspeed (500 mm/min.) for both lifting and lowering |
| Crosshead speed accuracy | +0.2 % |
| Joe (chuck) | parallel clamping (standard), pneumatic jaw (optional) |
| Extension indication | +0.000 to +99.9 mm digital indication |
| Load cell | 1, 2.5, 5, 10, 25, 50, 100, 250, 500 kgf |
| Jaw | parallel clamping type: 1, 2.5, 5, 10, 25, 50, 100, 250, 500 kgf |
| Upper fixed crosshead | between this crosshead and movable crosshead, it is possible to make tensile tests. |
| Recorder | automatic balance type (DC servo), with a single recording pen (red), recording method: rapid pen recording (with felt tip pen) recording paper: effective width 250 mm, 20 mm long roll paper |
| Referential standards | JIS P-8113-98, TAPPI T494om-01, ISO 1924/2 |
| Power source | single-phase 100/110 VAC 50/60 Hz 5A |
| Outer dimensions | 800x530x1670 mm |
| Instrument weight | 150 kg |
