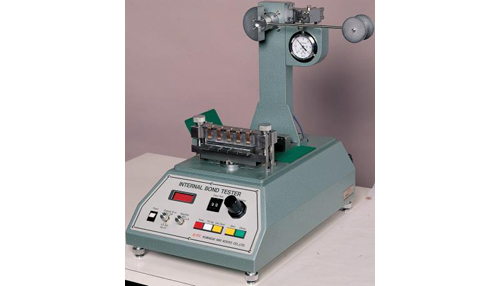

Internal bond tester (digital type) No.2085D

Internal bond tester (digital type) Like the No.2085, this tester dynamically measures delamination strength of paper or paperboard. It is particularly useful for obtaining pre-production knowledge on paper behaviors under severe conditions typical of a high-speed offset press. This tester automatically reads swinging angles of the pendulum to display them
digitally. Push button switches provide easy operation when starting the pendulum, making zero setting of rotating friction generated by the pendulum and setting a specimen in place.

Measurement range	0 to 0.4 N.m 0.3 to 0.8 N.m, changing the pendulum weight
Size and no. of specimens	25X25 mm 5 sheets
Adhesion pressure	20 to 100 kg (total pressure), pneumatic and automatic, Set value on the regulator is shown on the pressure gauge. Total actual pressure = reading on the pressure gaugex 200(kg)
Adhesion time	1 to 99 seconds, automatic upward and downward movement by timer
Adhesion of specimen	by air cylinder
Air pressure source	0.5 MPa or more
External output	provided with RS-232C output terminal
Referential standard	TAPPI UM403, T569
Power source	100/110VAC 50/60Hz 1 A
Outer dimensions	360X65X550 mm
Instrument weight	32 kg
