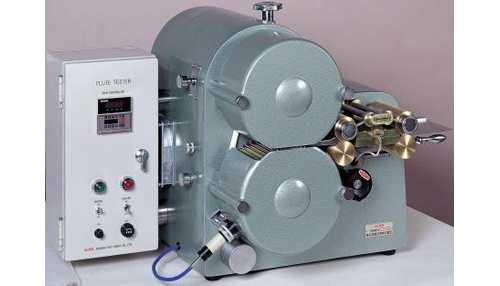

KRK Flute tester No.2100

When using corrugated board for packaging material, structural quality study includes checking of characteristics such as flat crush strength, end crush strength, ply bond strength and corrugated medium strength. This tester is developed as a pre-processing device for collecting samples for testing those characteristics. It can form specimens as wide as 100 mm. It works in the following mechanism. On a corrugating machine, pre-heated corrugating medium is threaded through corrugating rolls (gear-shaped) heated to 177+ ⁰Cunder a certain pressure, during which process corrugation is performed. The specimen formed is fixed in a rack using a ten-pin cantilever apparatus and then attached to the rack with double-faced adhesive tape to form one-sided corrugated board. A crush tester is used to compress the specimen and then the maximum load is measured.
