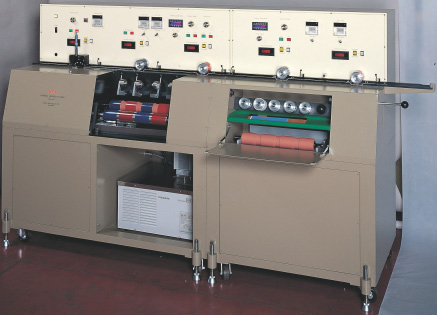

Universal printability tester (4 colors) No,.2258-II

This system has two sets of 2-color press of standard type, capable of printing on wet-on-wet basis: this machine is designed most suitably to grasp the behavior of color printing in the process of commercial off-set press. For set-off test, it is possible to set three stages of time delay at a time for effective testing.

Printing area	40 mm wideX200 mm long
Printing pressure	200 to 1600 N (strain gauge measures printing pressure)
Printing speed	0.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 m/sec
Printing modes	constant speed print, accelerated print 1, 2, 3 m/sec.
Printing unit	4 units
Outer dimensions	2750x780x1480 mm
Instrument weight	1070 kg
