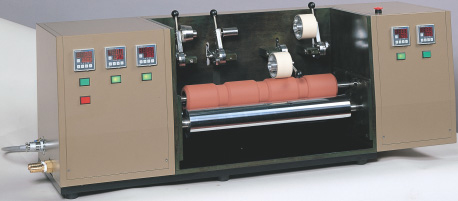

Ink kneader for universal printability tester No.2259



This is an ink kneader with separate portions for the universal printability tester. After ink is supplied, push the button to automatically knead the ink, and move the printing disc to ink the roll. The time length of kneading and inking is set by the timer. The temperature of the ink kneading roll can be controlled by connecting it to the constant temperature water tank.

Spesification

Ink kneading with four separate portions
Ink kneading time 10 to 999 seconds
Inking time 10 to 999 seconds
Optional variable kneading roll rotation speed Constant temperature water tank for heating
Power source three-phase 200/220 VAC 50/60 Hz 5A
Air source 0.5 MPa
Outer dimensions 1060 x 300 x 390 mm
Instrument weight 95 kg
