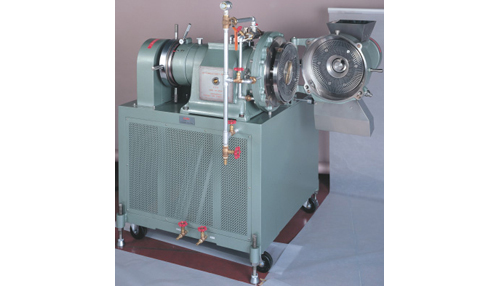

This refiner, like the No.2500-I, has been developed for continuous processing for a long time of various wood chips and other diverse fiber materials. It is used in laboratories and intermediate plants.
| Specimens subject to refining | RGP, CGP, KP, straw pulp,waste paper, etc |
| Section in contact with liquid | SUS-316 (stainless steel) |
| Interstice adjustment | 1/100 mm adjustable |
| Crushing plate | stainless steel casting, one set includes 6 plates, 305 mm in diameter |
| Rotation speed of main shaft | 3,000 rpm (standard) |
| Driving motor | three-phase 200 / 220 VAC, 22 kW / 30 kW |
| Material feeder | screw type |
| Optional | flange type material feed and recovery section |
| Motor for feeder | three-phase 200/220 VAC, 0.2 kW, steplessly variable speed |
| Optional | star-delta starter |
| Power source | three-phase 200/220 VAC 50/60 Hz 107A |
| Water supply | cooling water |
| Outer dimensions | 1030x1440x1270 mm |
| Instrument weight | 800 kg |
