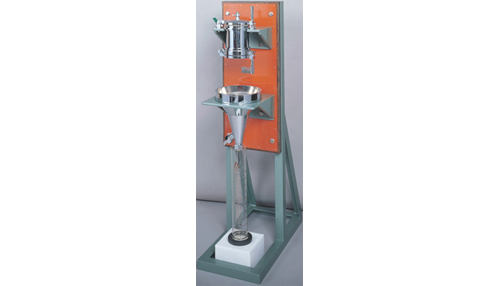

Canadian standard freeness tester No.2580-A

Beating pulp fiber provides effects such as fibrillation, generation of fines, reduction of fiber in length and volume, etc. depending on the beating method and time. As a result, various physical characteristics of the paper are affected in addition to the fluidity and drainage performance on wire cloth. Beating has a significant role in the paper manufacturing process, and the resulting drainage performance needs to be evaluated. Some of commonly used
evaluation methods involve use of a Canadian standard tester and Schopper-Riegler freeness tester. In those methods, a certain amount of suspension liquid is filtered through a screen plate or wire cloth, and the white water is sampled from the funnel side tube, whose amount is measured and used to determine the beatability. This tester uses a screen plate for filtering suspension liquid and is provided with a cock to be operated to start drainage.
Thus, it eliminates differences in the result when different operatorsare involved, yielding high accuracy.
