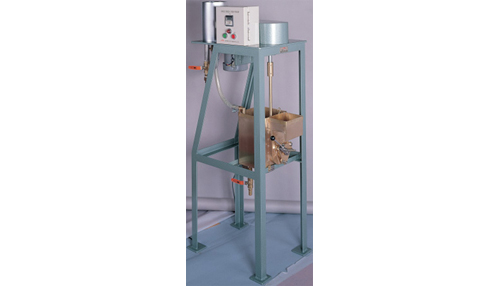

Pulp classifier (single-tank type) No.



Like the No.2590, this tester screens pulp fibers through screens into groups by fiber length. It is used for checking the condition of fiber length distribution and for measuring changes of fiber lengths caused by beating. Compared to the four-tank type, this model provides easier operation and more accurate measurements, and is the most suited type of tester for controlling the beating process at a plant.

Spesification

Wire cloth opening (inµm)of sieving tank select one opening size among1400(12),1000(16), 710(22),500(30),355(42), 300(50), 250(60), 180(83),150(100), 106(140), 75(200)[mesh in parentheses]
Flow rate 8.3 r/min.
Rotation speed 800 rpm
Optional one-touch wire cloth mounting, standard sieve receiver for recovery
Referential standard JIS P-8207-1976
Power source 100/110 VAC 50/60 Hz 2A
Outer dimensions 590x440x1130 mm
Instrument weight 35 kg
