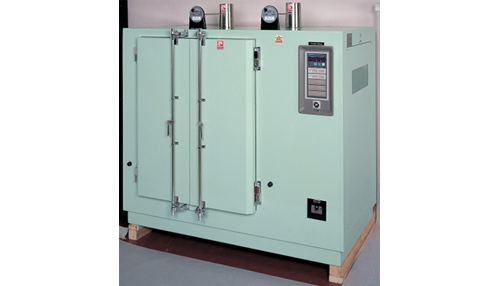

Dryer for measurement of chip moisture content No.2607

This dryer is used for measuring the moisture content of wood chips. Chips are placed inside the dryer for a certain length of time so that moisture content may evaporate. The moisture content is checked based on the difference between the constant mass weight of the chips and the weight before drying. In order to maintain unified temperature distribution inside the dryer, a forced circulation system is adopted for heated air, ensuring measurement of the moisture content after chips are evenly dried.

Chamber inner dimensions	880x660x1100 mm
Specimen dish	220x570x50 mm wet chip 1 kg or 3 kg 1 row, 10 stages, 30 trays
Material of inner wall	SUS-304
Material of tray	SUS-304
Maximum temperature	200⁰C
Service temperature	105⁰C
Temperature control	+ 1⁰C
Drying time	8 or 4 hours
Timer	max. 24 hours
Optional	external alarm terminal
Power source	three-phase 200/220 VAC 50/60 Hz 40 A
Referential standard	J.TAPPI No.2
Outer dimensions	1500x840x1560 mm
Instrument weight	680 kg

* We also fabricate moisture testers with specifications other than the above for
different total dry volumes and installation space conditions.
