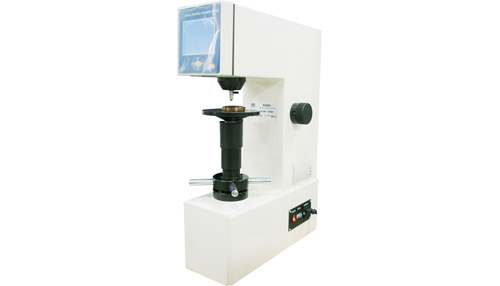

Rockwell Hardness Tester TSRP-150D

Digunakan untuk menguji lembaran logam, tabung berdinding tipis kekerasan permukaan dari baja ringan hingga baja keras

Applying grating sensor technology and SCM control system
Directly display hardness value
Has 15 kinds hardness scales
Identify the minimum thickness value and test the environment temperature
Suitable for testing carbide, carbide, surface hardened steel, hardened sheet metal, hardened steel, quenched and tempered steel, chilled cast iron, cast iron
Aluminum, copper, magnesium alloy steel

Model	TSR-150D	TSRP-150D
Pre-test force(N)	98,29.4
Total test force(N)	588,980,1471,141,294,441
Dwell time(s)	1~60
Indication reading	Dial	LCD
Measuring range	(20~88)HRA (70~94)HR15N (67~93)HR15T (20~100)HRB (42~86)HR30N (29~82)HR30T (20~70) HRC (20~77)HR45N (10~72)HR45T
Vertical testing range(mm)	160
Horozontal testing range(mm)	140
Dimestions(mm)	463×241×660	463×175×660
Power supply	AC220V/50HZ
Weight(kg)	70	75
