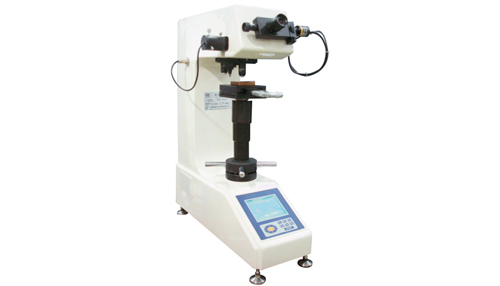

Brinell Hardness Tester THB-62.5THBP-62.5

Large LCD screen to display the hardness value directly
Excellent stability without weights inside, good maneuverability
With transducer and compact structure to enhance the precision
The tester has wide measurement and high accuracy by means of a 5× objective and 10× objective
8 types of test force to be adjusted on the keyboard without manual switch

Model	THB-62.5S	THBS-62.5S	THBP-62.5S	THB-62.5	THBS-62.5	THBP-62.5
Hardness value range	(4-650)HBW
Test Force	9.8、49、61.29、98、153.2、294.2、 306.25、612.9 (1、5、6.25、10、15.625、 30、 31.25、62.5Kg)
Tolerance	±3.0%
Test force choosing	Keyboard input
Carriage control	Loading/dwell/unloading (automatic)
Dwell time	5 to 99s
Turret	Manual			Motorized
Eyepiece	√			√
Digital Eyepiece		√	√		√	√
Eyepiece Resolution	0.5μm	0.25μm	0.25μm	0.5μm	0.25μm	0.25μm
Amplification of Object lens	5×，10×
Magnification	50×，100×
Measuring Range	400μm
Optical channel	Dual Optical channel : Eyepiece and Image pick-up device
Light resource	5V/3W LED
Trim filter	Blue
Display items	Indentation diameter, Hardness value, dwell time, test force N, kf
Max. height of the specimen	220 mm
Max. width of the specimen	160mm
Working Temperature	10℃ to 38℃
Humidity	10% to 90%
RS232 interface for Inbuilt Printer		√	√		√	√
Data statistic		√	√		√	√
Dimensions	560 × 190 × 700mm
Net Weight	50kg

Digunakan untuk menguji lembaran logam, tabung berdinding tipis kekerasan permukaan dari baja ringan hingga baja keras
