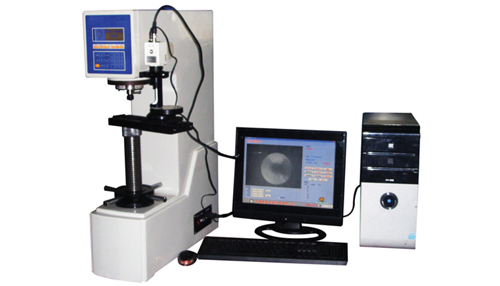

Brinell Hardness Tester THBC-3000DA



Digunakan untuk menguji lembaran logam, tabung berdinding tipis kekerasan permukaan dari baja ringan hingga baja keras

Feature

  • Measure the hardness value by the pc software easily
  • Excellent stability without weights inside, good maneuverability
  • With transducer and compact structure to enhance the precision
  • The tester has wide measurement and high accuracy by means of a 20× objective
  • 8 types of test force can be adjusted on the keyboard without manual switch

Spesification

Model THBC-3000DA
Hardness value range (8-650)HBW
Test Force

612.9N（62.5Kgf）、 980N(100Kgf)、1225N(125Kgf)、1839N(187.5Kgf)2452N(250Kgf)4900N(500Kgf)、 7355N（750Kgf）、
9800N(1000Kgf)、14700N(1500Kgf)、29400N(3000kgf)
Test force selection Keyboard input
Carriage control Loading/dwell/unloading (automatic)
Dwell time 5 to 99s
Turret Manual
Eyepiece magnification 20x
Vertical Testing Space 240mm
Horizontal Testing Space 130mm
Working Temperature 10℃ to 38℃
Humidity 10%  to  90%
Tester Dimension 760x530x185mm
Weight 120kg
