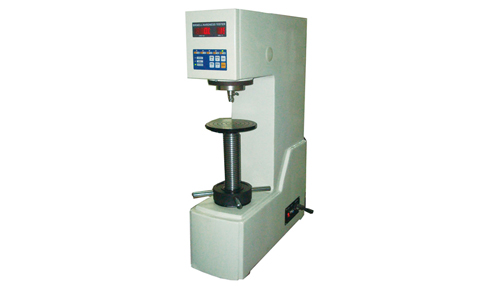

Brinell Hardness Tester THBS-3000D



Digunakan untuk menguji lembaran logam, tabung berdinding tipis kekerasan permukaan dari baja ringan hingga baja keras

Feature

The Brinell hardness tester is widely used in such industrial fields as metallurgy,forging ,casting ,unhardened steel and nonferrous metals industries, as well as in the laboratories, universities ,colleges and scientific research institutes.

The Brinell hardness tester shows the largest indentation among all the hardness tests which is able to reflect the comprehensive features of the material

  • THB-3000D adopts electronic loading method, with eyepiece measurement method.Look up the hardness value table for the result
  • THBS-3000D is newly designed LCD digital Brinell Hardness Tester, mainly used in black metal, nonferrous metals. The tester adopts auto electronic loading, computer software program, high magnification measurement. All the operation can be done by keyboard
  • THBS-3000DA (reading directly) digital  Brinell Hardness Tester adopts digital  encoder measurement mode . The testing result can be display on the LCD screen
  • Standards conforming to: ASTM E-10, ISO6506.2

Spesification

Model

 THB-3000D THBS-3000D THBS-3000D
Hardness value range (8-650)HBW
Test Force 612.9N（62.5Kgf）、 980N(100Kgf)、1225N(125Kgf)、1839N(187.5Kgf)、 2452N(250Kgf)、4900N(500Kgf)、7355N（750Kgf）、9800N(1000Kgf)、
14700N(1500Kgf)、29400N(3000kgf)
Test force selection Keyboard input
Carriage control

Loading/dwell/unloading (automatic)
Dewell time 5 to 99s
Turret Manual
Eyepiece magnification 15X 15X 20X
Simulation Eyepiece √ √
Digital Eyepiece     √
Ocular Resolution 1.25μm
Content shown on the LCD display Test force ,Dwell time Indentation Diameter, Hardness Value, Test force ,Dwell time Indentation Diameter, Hardness Value, Test force ,Dwell time
Hardness Value digit 4 digit
Indentation Diameter 4 digit (D1,D2)
In-Built Printer   √
Vertical Testing Space 240mm
Horizontal Testing Space 130mm
Working Temperature 10℃ to 38℃
Humidity

10%  to  90%
Dimensions 760x530x185mm
Weight 120kg
