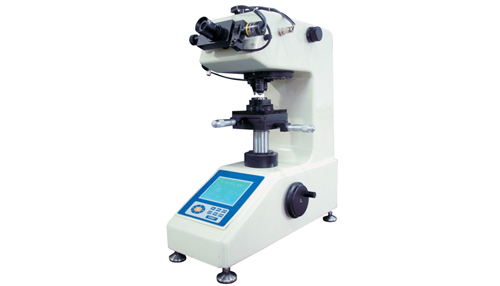

Digital Micro Vickers Hardness Tester TMVP-1S/1

Beautiful shape, has good reliability, operability and intuitive
Built-in computer, only has to input length of the indenter, directly read the measured value
Applying 400X magnification optical measurement systems and high-precision optical sensor technology to achieve the automatic switch of indenter and measuring device
Provide conversion table of various hardness scales
With LCD screen directly display test force, indentation length hardness value, dwell time and file number
Built-in printer
Especially suitable for testing steel, nonferrous metals, IC flake, thin plastic, foil, coating, plating layer, the surface coating, laminating metal, depth and hardness gradient of heat treatment and carburization layer of carbonized layer

Model	TMV-1S	TMVS-1S	TMVP-1S	TMV-1	TMVS-1	TMVP-1
Hardness scale	HV0.01，HV0.05,HV0.025，HV0.1，HV0.2，HV0.3，HV0.5，HV1
Test force	10,25,50,100,200,300,500,1000gf
Carriage control	Loading/dwell/unloading(automatic)
Dwell time	5-99s
Turret	Manual			Auto
Amplification of objective	10×
Resolution of objective (µm )	0.25	0.01	0.01	0.25	0.01	0.01
Amplification of eyepiece	10×			40×
Measuring range of amplified indentation	200um
Light source	5V/3W LED
Display	hardness scale, conversion value, test force N,kf
Dimension of XY table(mm)	100×100
Movement field of XY table (mm)	25×25
Power	220V, 60/50Hz

untuk pengujian baja, logam nonferrous, IC serpihan, plastik tipis, foil, coating, plating lapisan, lapisan permukaan, laminating logam, kedalaman dan gradien kekerasan perlakuan panas dan lapisan karburisasi lapisan arang
