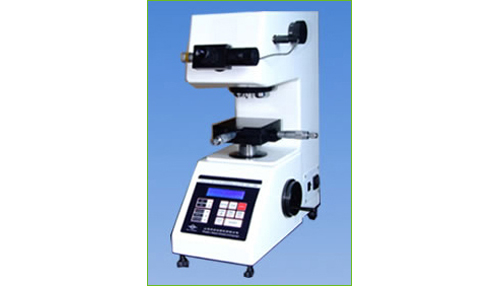

Micro Vickers Hardness Tester DHV-1000

untuk pengujian baja, logam nonferrous, IC serpihan, plastik tipis, foil, coating, plating lapisan, lapisan permukaan, laminating logam, kedalaman dan gradien kekerasan perlakuan panas dan lapisan karburisasi lapisan arang

New high-tech product integrating mechanical and photoelectrical technologies
Equipped with a digital microscope，direct display of the measuring method, test force, indentation length, hardness value, dwell time of test force
Camera device can be connected via RS232 interface
Especially suitable for testing the hardness of micro and thin specimen, fragile material
By means of a 10× objective and a 40× objective, the tester has wide measurement and highaccuracy
Optional Knoop indenter can be used to measure Knoop hardness value

Test Forces	(0.098, 0.246, 0.49, 0.98, 1.96, 2.94, 4.90, 9.80)
Carriage Control: automatic	loading / dwell / unloading
Amplification of the Microscope	100 ×、 400 ×
Dwell Time of the Test Force	(5-60)s
Min. Graduation Value of the Testing Drum Wheel	0.0625um
Testing Field	1HV-2967HV
Dimension of the XY Table	100 × 100 mm
Movement Field of the XY Table	25 × 25mm
Max. height of the specimen	70mm
Max. width of the specimen	95mm
Light source	cold light source
Power supply	110V/220V, 60/50Hz
Dimension	425 × 245 × 490mm
