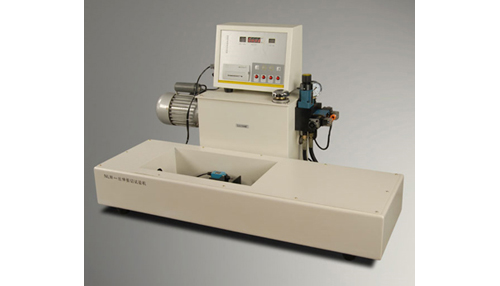

NLW-20 Adhesive Tensile & Shear Tester

Adhesive tensile tester & Shear Tester dirancang dan diproduksi sesuai dengan GB 7124, yang merupakan metode pengukuran untuk perekat elongasi dan geser. Kinerja yang memenuhi persyaratan GB 5164, GB 6328, ISO 4587, ISO / DIS 6922, 6237, JIS K6850, 6849, ASTM D1002, D2095, D3165, D2339 dan HG4-852-854. Hal ini berlaku untuk perpanjangan, geser, dan kupas tes untuk perekat otomotif

Microcomputer control, digital display, professional software support.
Man-machine conversation, input testing parameters, standard unit, no need of manual conversion.
Satisfy elongation, shear, and peel off tests for sheet, stick or other shape samples.
Analyze group tests, output arithmetic average, maximum and minimum value.
Micro-printer prints out testing result, parameter and time.
RS232 enables data communication. Powerful function, easy to operate, stable performance.

Specification	20kN
Accuracy	±1％of force reading
Force resolution	1N
Test speed	5~50mm/min
Stroke	.150mm
Ambient condition	Temperature 10~35ºC Humidity 20~60%RH
Power	AC 220V 50Hz / 60Hz
Dimension	1090(L) mm x 610(B) mm x 640(H) mm
Net weight	125kg (include hydraulic pressure pump oil)
