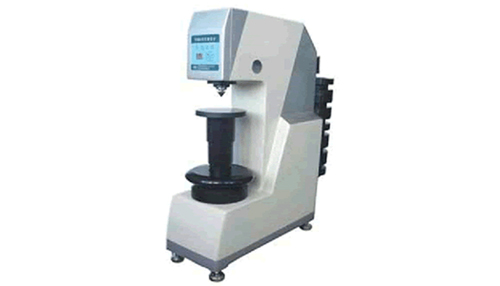

BRINELL HARDNESS TESTER HB-3000B-1



Model HB-3000 Brinell Hardness Tester is the winner of the national quality silver medal prize. It adopts the mechanical changeover switch. Model HB-3000B is equipped with an electrical changeover switch. They can be used to determine the Brinell hardness of unquenched steels, cast iron non-ferrous metals and soft bearing alloys, etc.

Feature

Main accessories:

  • Large flat anvil: 1 pc.
  • Small flat anvil: 1 pc.
  • V-notch anvil: 1 pc.
  • Steel ball penetrator:Φ2.5,Φ5,Φ10mm 1 pc. each
  • Brinell standardized block: 2 pcs.
  • 20 x Readout microscope: 1 pc.

Spesification

Measuring range 8-450HBS, 8-650HBW
Test force 1.839, 2.452, 7.355, 9.807, 29.42KN (187.5, 250, 750, 1000&3000kgf)
Max. height of test piece 230mm
Depth of throat 120mm
Power supply 220V AC/110V AC, 50/60Hz
Dimensions (L x W x H) 700mm x 268mm x 842mm
Weight approx.210kg
