Adhesion Tester | Ply adhesion tester No.2107

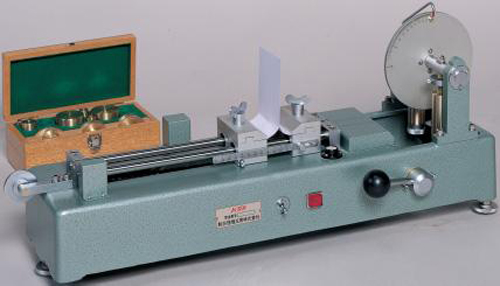

The ply adhesion of paperboard is an important factor in process steps including printing, cutting and box making. This property has been evaluated by various test methods. This tester measures the ply adhesion of combination board. It is provided with a pair of chucks sliding in the horizontal direction. One end of specimen is connected to a pendulum that gives peeling load, and the chuck on the other side is linked with a driving device moving at a constant speed. First, peel the plies of specimen for a length of 20m, and bend the peeled portions outward to form a T shape. Fix both ends of the peeled portions with the chucks, and gradually move the chuck by the motor. At positions about 20 mm, 40 mm and 60 mm from the peeling start point, read the load on the scale.
