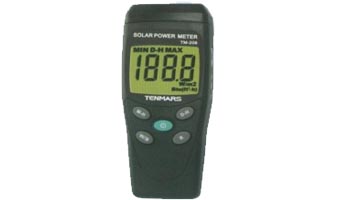

Solar Power Meter TM206 - TM207
Untuk memesan, silahkan tekan tombol . Anda bisa memesan barang secara Online.
Anda juga bisa memesan via telephone. Silakan hubungi sales consultant, Hotline kami di, sales@alatuji.com sales Consultant kami akan menjelaskan detail produk dan harga terbaru. atau email ke alamat
Feature
Display :
- 3-1/2 digits LCD with max reading 2000.
Features :
- End-mount light sensor.
- Select either power or transmission.
- Select either W/m2 or BTU/(ft2*h) units.
- Data hold/max/min modes.
- Wire length of the remove sensor, approximately 1.5 metres (TM-207).
Applications :
- Solar radiation measurement.
- Solar power research.
- Physics and optical laboratories.
- Identify high performance windows.
- Simple to use general data.
Spesification
- Display : 3-1/2 digits, max indication 2000.
- Range : 2000 W/m2, 634 BTU/(ft2*h).
- Resolution : 0.1 W/m2, 0.1 BTU/(ft2* h).
- Accuracy : typically within ±10W/m2 (±3 BTU/(ft2*h)) or ±
5%, whichever is greater in sunlight; additional temperature induced error ±0.38W/m2/˚C (±0.12BTU/(ft2*h) /˚C ) from 25˚C.
- Drift : <± 2% per year.
- Over-input : display shows " OL".
- Sampling time : approx. 0.25 seconds.
- Battery : 1 pc size 9 V.
- Battery life : approx. 100 hours.
- Operating temp : 0 to 50˚C below 80% RH.
& humidity
- Weight : approx. 150 g.
- Dimension : 130 x 55 x 39 mm (L x W x H)
