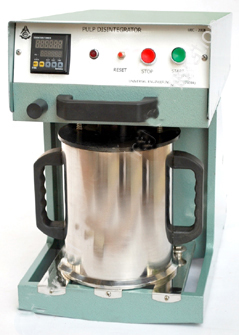

Pulp Disintegrator
Instrumen ini digunakan untuk disintegrasi standar pulp untuksuspensi homogen diperlukan untuk persiapan lembaranlaboratorium tangan dan tujuan lainnya. Unit memutar baling-balingdrive dengan stainless steel dan poros. Baling-baling digerakkanoleh motor listrik melalui timing belt melangkah, yang menjamindrive langsung tanpa selip
Feature
- Mechanical Preset impulse Counter on front panel for setting desired number of revolution.
- Digital Preset Pulse Counter on front panel for setting desired number of revolution.
- Pulp Container with Heating Elements and Thermostat control
- Preset Pulse Counter on front panel for setting desired number of revolution.
- Pulp Container with Heating Elements, Thermostat and 100% safe insulation.
- The thermostat control is set at 85 0C to maintain constant temperature of stock
Spesification
Construction | Made of stainless steel container an and aluminimum fabricated body |
Capacity | 2 Litres with for equally spaced spiral baffles |
Propeller | The three blade propeller mounted on a vertical shaft as per standard radius |
Cabinet Type | Hinged top for quick opening |
Rotational Frequency | 2975 ± 25 rpm |
Motor | 0.5 KW, 3 Phase, 440V AC |
Safety System | Double Safety System permits start only when drive unit and vessel are in correct working position |
Applicable Standards | ISO 5263, TAPPI 205/220 SCAN C18/M2, CPPA C6 |
