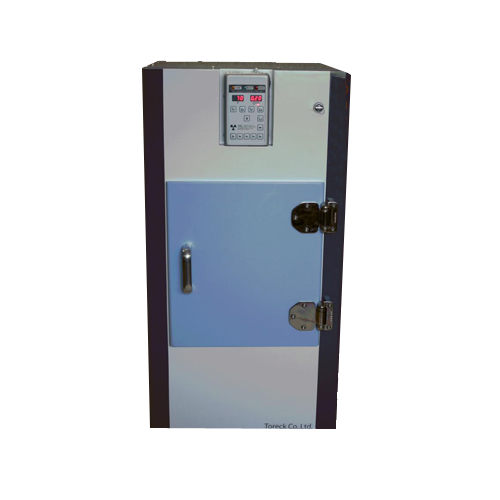

Digital X-ray system XIF-80



XIF-80 is a source of high-resolution fluorescent screen, with a CCD camera combined into the system. Main purpose are for field of early stage inspection. The images can be shown on a notebook PC which is included.

Feature

  • Arrangement between Fluorescent plate and CCD camera conveys sharper images.
  • Complicated free system, easy to use.

Spesification

DIGITAL PHOTOGRAPHICAL

DISPLAY

 X-RAY GENERATOR X-RAY SHIELD BOX
Photo size 260mm×200mm Tube voltage 40～80kV External dimension
H1200―W600―D650
Resolution 3.2 Lp/mm Tube current 15mA Equipment Interlock switch

Image file format jpg

(max6MByte)

 Focus size 1.0mm×1.0mm X-ray leakage dose rate
Lower than 1μSv/h
