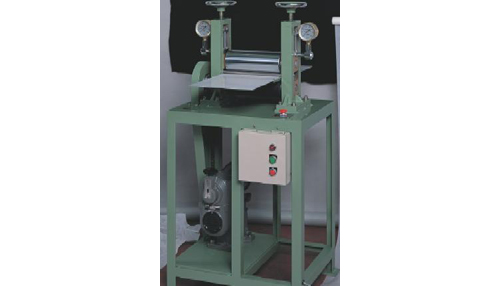

Small-size calender No.2232



This machine is used to adjust the density or smoothness of ordinary paper and handmade paper. It can be easily operated in the laboratory. Machine configuration: provided with two or three hard steel rolls, and a simple hydraulic system; the specimen is pressurized by operating the handle. The paper end is fed into the nip, by sliding the paper placed on the specimen table.

Spesification

Roll 150 mm in diameter, 250 mm long, made of SUS or hard chrome-plated and polished
Press speed 2.5 to 10 m/min., steplessly variable
Line pressure max. 15 kg/cm
Pressing hydraulic, manually operated
Pressure gauge 3 MPa
Motor three-phase 200/220 VAC, 0.4 kW
Outer dimensions 640x535x1340 mm
Instrument weight 173 kg
