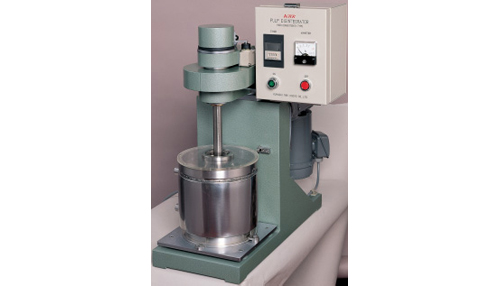

High-consistency disintegrator No.2528

A considerable amount of waste paper is used as low cost material in the age requiring resource and energy saving in the pulp and paper industry. Almost all paper kinds are recycled, including newspaper, paperboard, wood free paper and paper for office automation machines. The essential point of waste paper pulping is effective breaking by efficient use of power. This high-concentration disintegrator is used to study this topic. It is most suitable to investigate technological and economic use of waste paper in the laboratory.

Capacities	2, 5, 10 L
Concentration	20 % (test value for waste newspaper)
Rotation speed of main shaft	(steplessly variable) 180 to 700 rpm (2 l) 45 to 310 rpm (5 l) 40 to 220 rpm (10 l)
Jacket	for heating and cooling
Material container	SUS-304
Disintegration time	by setting the timer
Motor	three-phase 200/220 VAC, 0.75 kW
Power source:	three-phase 200/220 VAC 50/60 Hz 5A
Outer dimensions	500x760x690 mm (2l) 530 x 825 x 785 mm (5 l) 570 x 900 x 930 mm (10 l)
Instrument weight	92 kg (2 l), 167 kg (5 l), 195 kg (10 l)
